Living at Gelber Block

gelb_web_LQ Titelbild 01 Strasse 006 — Photo zillerplus

City Munich

Builder-Owner Wohnungsgenossenschaft München-West eG

Status Start of construction 2023, completion 2025

Data Floor space 15,900 m2 (incl. 4,800 sq.m. densification), 215 residential units, retail, underground garage

Commission HOAI phases 1-5, partly 6-8

Task A cooperative wants to build high-quality urban living for its members in Munich's Westend district.

Challenge Renovation and densification

Solution Addition of further storeys to late 19th-century block structures, enhancement of green areas and the access to the existing buildings

Staff

Projektteam

Frank Feuchtenbeiner, Sebastian Klich, Maria Kremsreiter, Mateja Mele, Carlos Moya, Florian Rothermel, Susanne Seufert (Projektleitung LPH 5-8), Robert-Christopher Tubbenthal (Projektleitung LPH 1-4)

JHQQ0072 — Photo Wohnungsgenossenschaft München-West eG

Preserving and supplementing in a building cooperative

Wohnungsgenossenschaft München West is deeply rooted in Munich's Westend, shaping this district with its buildings, small-scale shops and restaurants. To create additional urban living space, the ‘Gelber Block’ in the centre of Westend is set to be densified. The building, which is not as tall as the surrounding developments, was designed in the style of New Objectivity (built in 1927, by architects Eugen Dreisch, Emil Freymuth, Herbert Landauer) and currently comprises 169 residential units, primarily two-room flats. To ensure a diverse housing mix, there is a need for larger, family-friendly units with flexible layouts.

Status quo

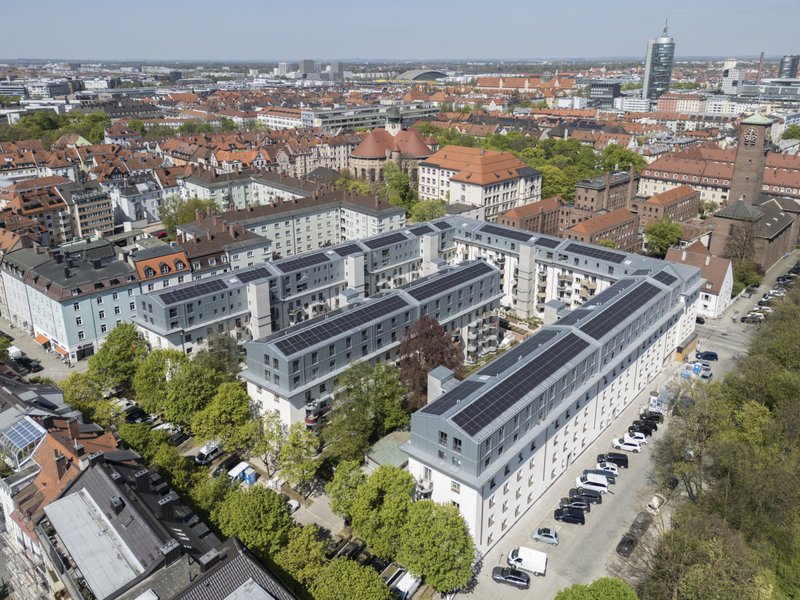

The prefabricated elements in modular timber construction allow the two additional storeys with 48 flats to be built quickly in Munich's Westend district. The gradual move into the first new flats began in November 2024 and will be completed in June 2025.

Taking 'New Objectivity' to the next level

The refurbishment of the existing building picks up on the theme of New Objectivity , while the extension forms a material counterpoint without abandoning the theme of the original construction period.

To achieve a continuous eaves height all around the block, two residential storeys extend along each of the three elongated buildings and an additional storey along the head building was added as part of the extension. A clear separation is created between the existing building and the extension by means of a space-creating cornice – a gesture often seen in the Westend.

New lifts on the stairwells facing the courtyard enable barrier-free access to both the newly added storeys and the intermediate landings of the existing stairwell. The façade, open spaces, and circulation areas of the existing buildings are upgraded and balconies are added.

The original plans from the 1920s envisaged a shop unit on the ground floor of Georg-Freundorfer-Platz, which was converted into flats over the years. This space is currently being renovated and converted into a new neighbourhood meeting place.
